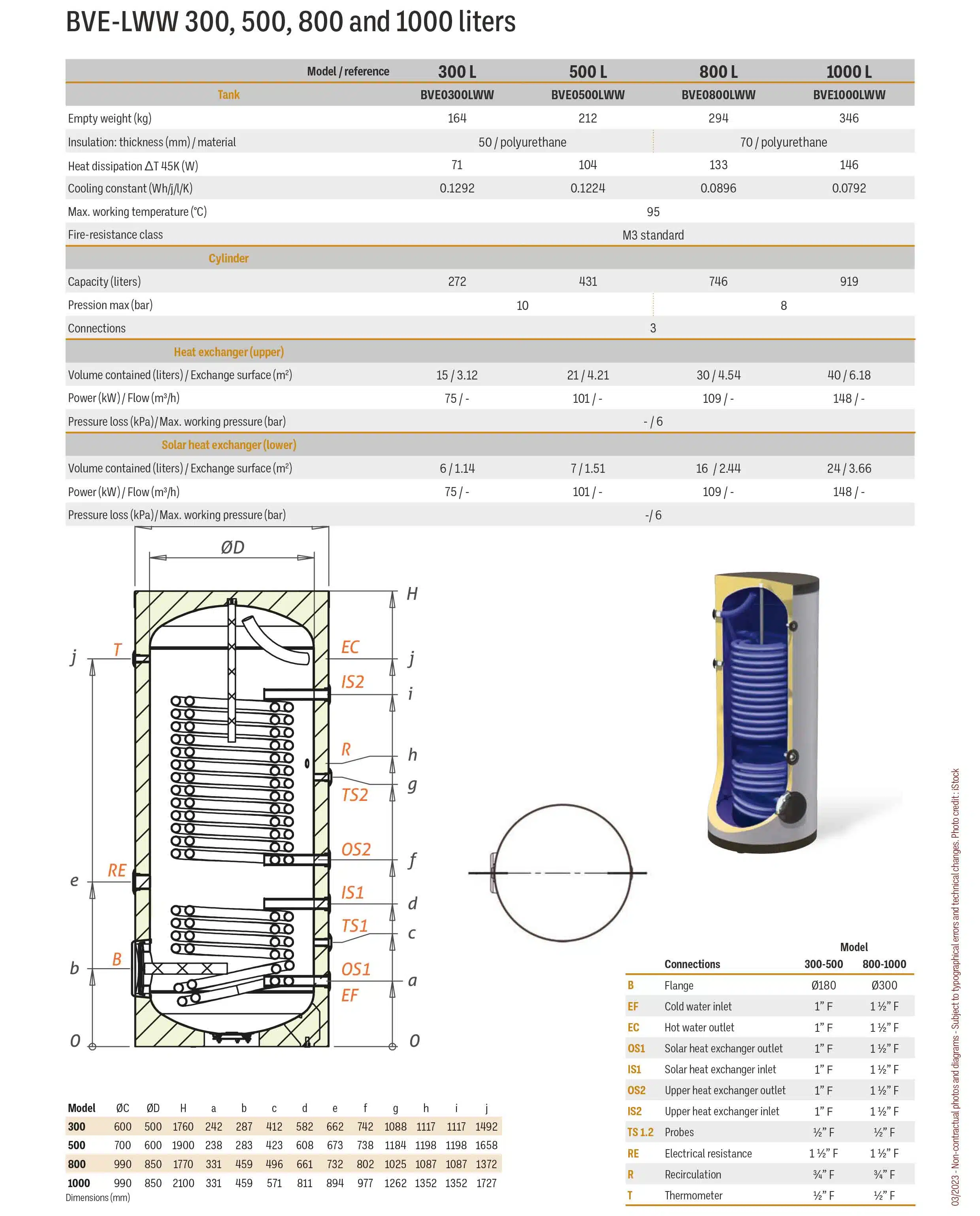

Heat pump tank BVE-LWW 300 to 1000 - Double heat exchanger, large area for HP

Description

The BVE-LWW series tanks are specially designed for primary circuit solar systems.

They are also equipped with a large surface heat exchanger (top) suitable for heat pump applications.

The tank and the heat exchangers are made of enamelled steel.

These tanks are to be placed on the ground.

Download the documentation

Access the installation and user manuals

A customized study will be provided by our engineering office for each product.

Additional information

– Enamelled steel sanitary hot water storage tank*, equipped with two heat exchangers with a large aera
– Tank enamelling inside treatment according to DIN 4753-3 and UNI 10025
– Protection by magnesium anode
– Rigid PU insulation 50 to 70 mm thick, zipped PVC cover finish, removable
– Optional electric back-up on 1 ”1⁄2 connection above the heat exchanger
– External casing classified as standard M1 fire

– 3 years warranty, electric part 2 years warranty
* Sanitary water meeting the French standard according to decree N° 89-3 of 03/01/89
