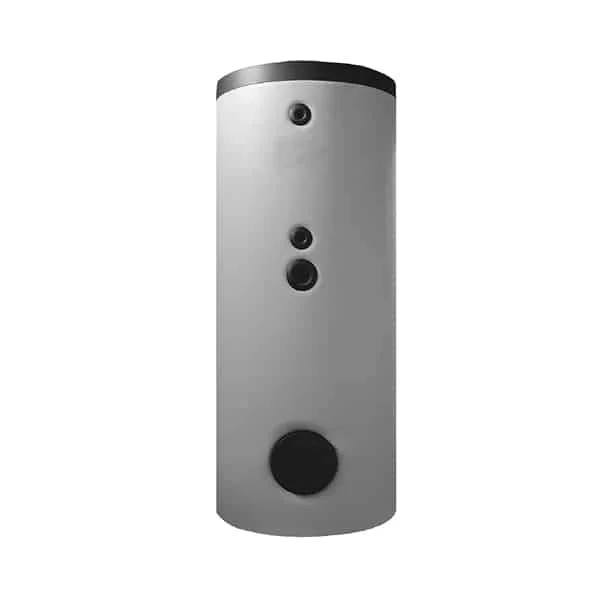

Solar storage tank BVE-WW 1500 to 2000 – Double heat exchanger

– Enamelled steel sanitary hot water storage tank*, equipped with two heat exchangers
– Tank enamelling inside treatment according to DIN 4753-3 and UNI 10025
– Protection by 2 magnesium anodes
– Polyester fiber insulation 100 mm thick, zipped PVC cover finish
– Optional electric back-up on 1 ”1⁄2 connection above the heat exchanger
– External casing classified as standard M1 fire
– 5 years warranty, electric part 2 years warranty
* Sanitary water meeting the French standard according to decree N° 89-3 of 03/01/89

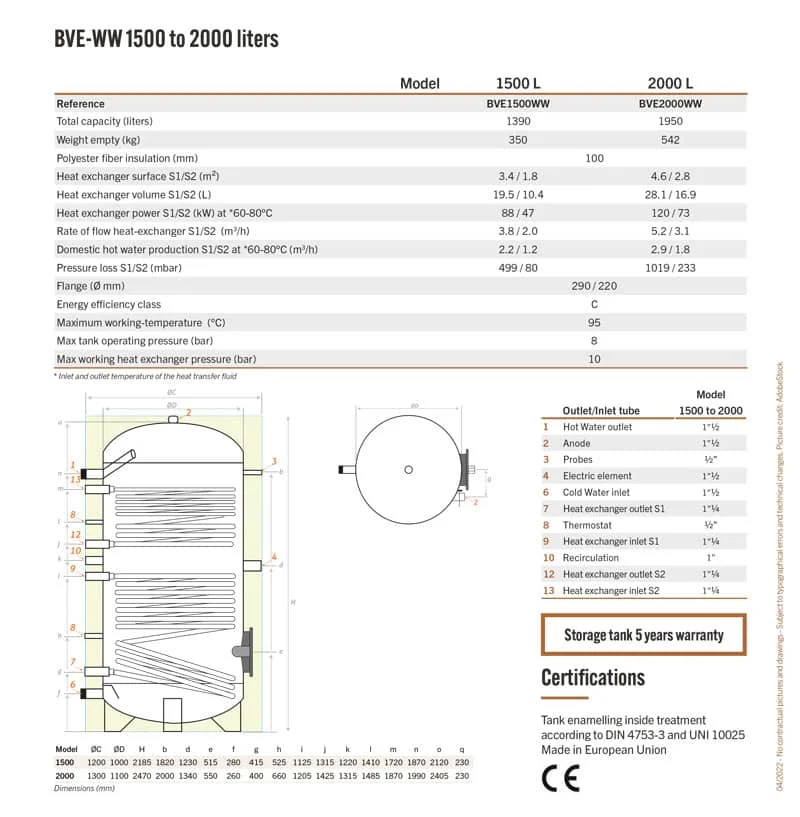

Technical specification of BVE-WW 1500 to 2000 liters







Descripción

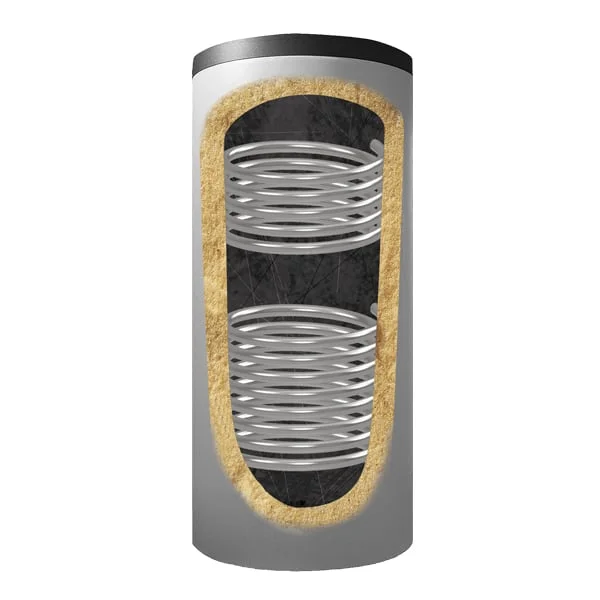

The BVE-WW series tanks are specially designed for primary circuit solar systems. They are equipped with two heat exchangers.

The tank and the heat exchangers are made of enamelled steel.

These tanks are to be placed on the ground, and are generally used in combination with solar production (on the bottom heat exchanger) and back-up by a boiler or heat pump (on the top heat exchanger).

Download the documentation

Access the installation and user manuals

A customized study will be provided by our engineering office for each product.
