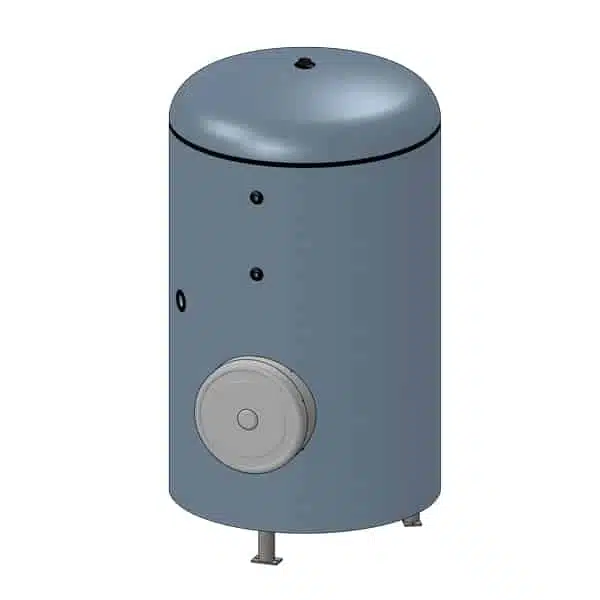

Solar storage tank BVE-WW 2500 to 3000 – Double heat exchanger

Descripción

Descripción

The BVE-WW series tanks are specially designed for primary circuit solar systems. They are equipped with two heat exchangers.

The tank and the heat exchangers are made of enamelled steel.

These tanks are to be placed on the ground, and are generally used in combination with solar production (on the bottom heat exchanger) and back-up by a boiler or heat pump (on the top heat exchanger).

Download the documentation

Access the installation and user manuals

A customized study will be provided by our engineering office for each product.

Ballon solaire BVE de 2500 à 3000 litres pour le stockage d’eau chaude sanitaire en acier émaillé à circulation directe

Información adicional

– Enamelled steel sanitary hot water storage tank *, with two heat exchangers
– Tank enamelling inside treatment according to DIN 4753-3
– Protection by magnesium anodes
– 100 mm thick mineral wool insulation, PVC cover finish, removable
– Inspection flange Ø 406 mm
– Electric backup with armoured elements 9, 15 or 30kW on flange
– External casing classified as standard M1 fire
– M0 on request
– 5 years warranty, electric part 2 years warranty
* Sanitary water meeting the French standard according to decree N° 89-3 of 03/01/89
