BVE-W 1500 a 2000 – Tanque solar de ACS con intercambiador simple

– Enamelled steel sanitary hot water storage tank*, equipped with one heat exchanger
– Tank enamelling inside treatment according to DIN 4753-3 and UNI 10025
– Protection by magnesium anode
– Polyester fiber insulation 100 mm thick, zipped PVC cover finish
– Optional electric backup on 1 ”1⁄2 connection at mid-height
– External casing classified as standard M1 fire
– 5 years warranty, electrical part 2 years warranty

* Sanitary water meeting the French standard according to decree N° 89-3 of 03/01/89

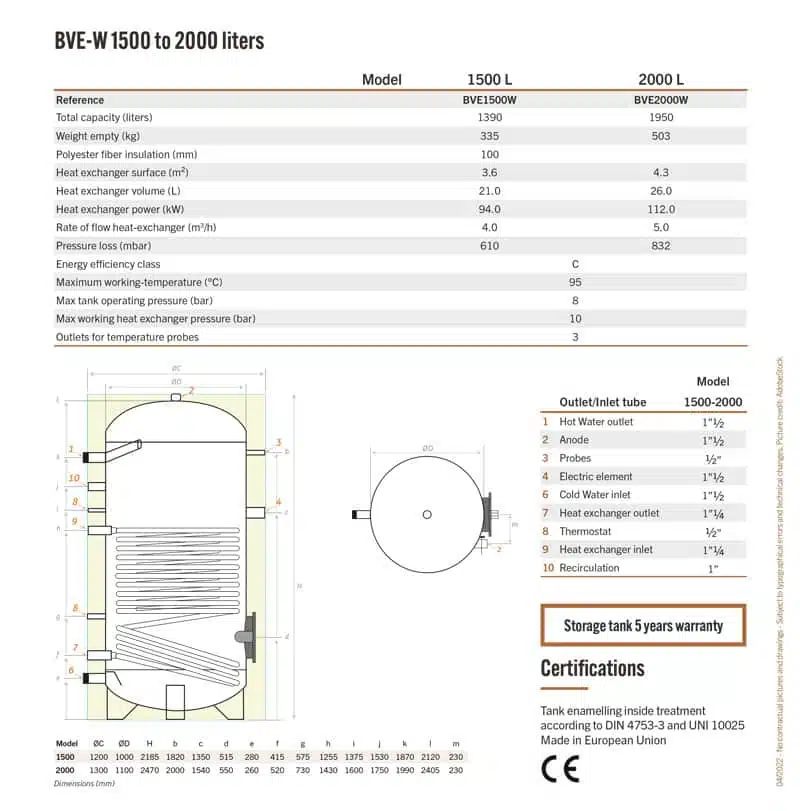

Technical specification of BVE-W 1500 to 2000 liters Syrius







Descripción

The BVE-W series tanks are specially designed for primary circuit solar systems. They are equipped with a heat exchanger.

The tank and the exchanger are made of enamelled steel.

The heat exchanger connections are located
on the side at the rear of the tank, separately from the cold water inlet and hot water outlet located on
the front panel.

These tanks are to be placed on the ground.

Download the documentation

Access the installation and user manuals

A customized study will be provided by our engineering office for each product.
