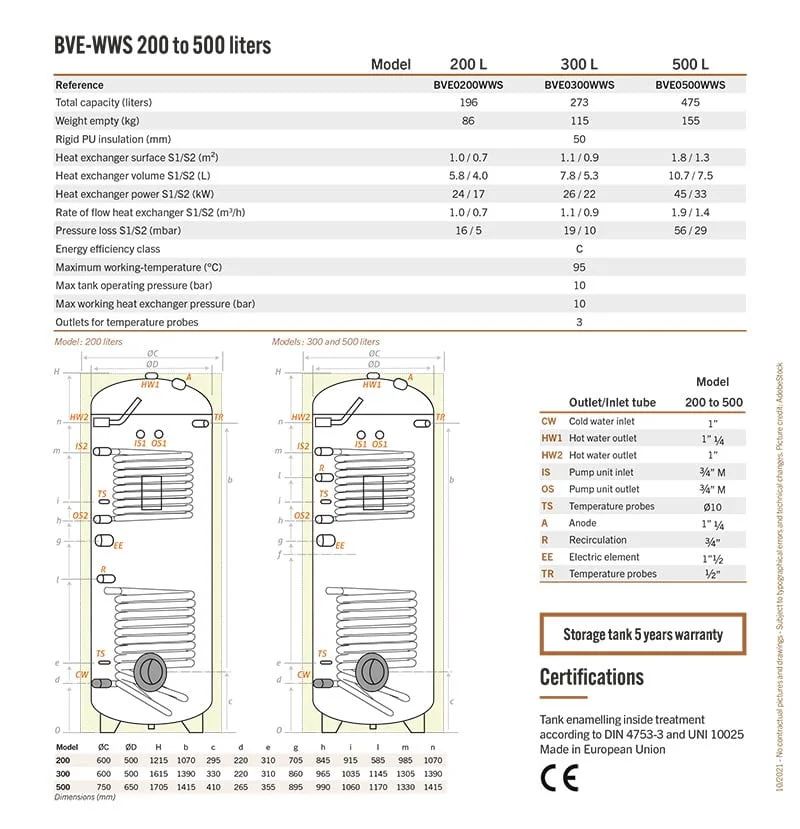

Solar storage tank BVE-WWS 200 to 500 – Double heat exchanger

– Enamelled steel sanitary hot water storage tank*, equipped with two heat exchangers
– Tank enamelling inside treatment according to DIN 4753-3 and UNI 10025
– Protection by magnesium anode
– Rigid PU insulation 50 mm thick, zipped PVC cover finish
– Optional electric back-up on 1 ”1⁄2 connection at mid-height
– External casing classified as standard M1 fire
– 5 years warranty, electric part 2 years warranty

* Sanitary water meeting the French standard according to decree N° 89-3 of 03/01/89









Descripción

The BVE-WWS series tanks are mainly used for the composition of a ISWH’s set.

The solar pump and the expansion tank are mounted directly on the storage tank in the factory. All that remains to be done is to connect the collectors, hot and cold water to the storage tank, which makes installation easier.

The tank and heat exchanger are made of enamelled steel.

These tanks are to be placed on the ground.

Download the documentation

Access the installation and user manuals

A customized study will be provided by our engineering office for each product.
